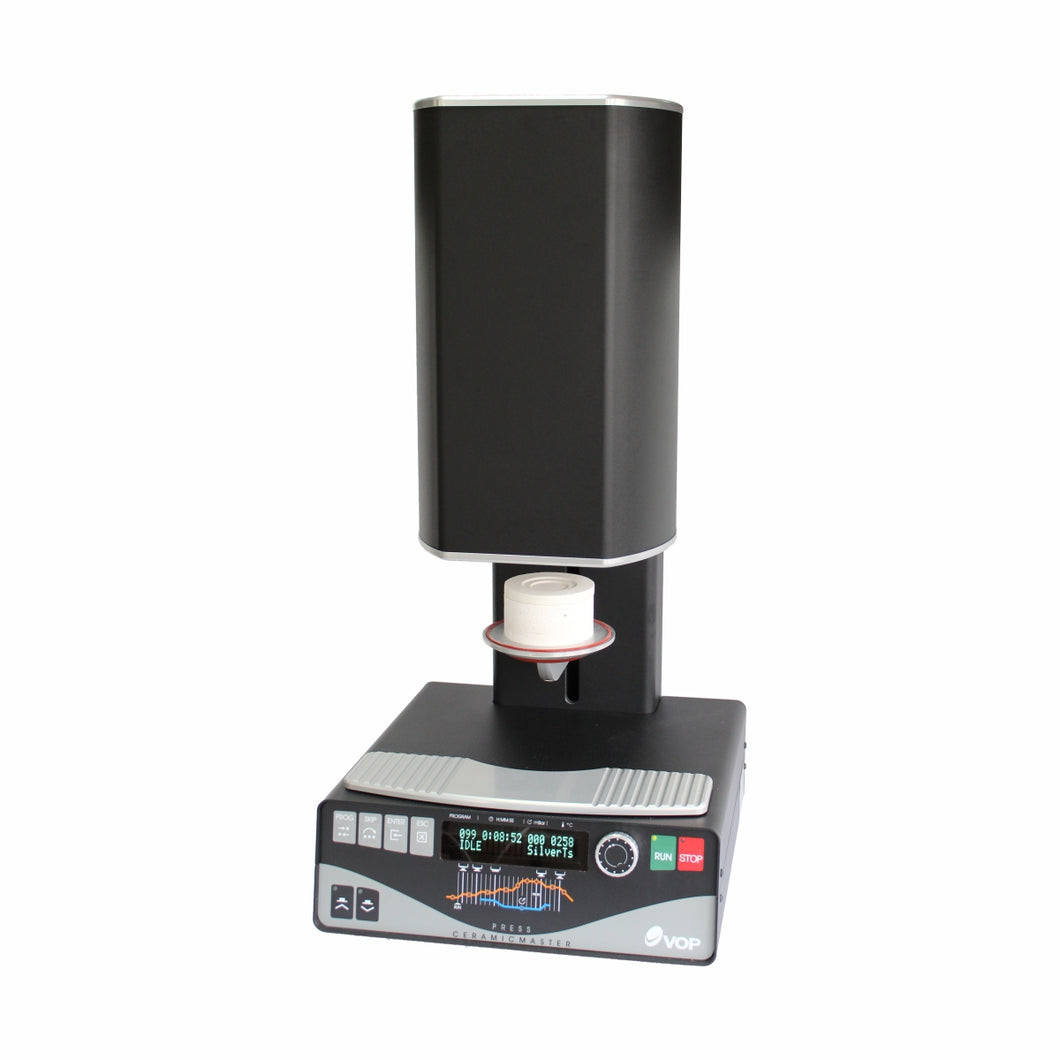

VOP Ceramic Press Furnace
Ceramicmaster Press Programmable dental furnace for the metal, pure and press ceramics
- Designed for all types of dental metal, pure and press ceramics
- No need of compressor for the pressing process
- Can be used for metal ceramics and sintering of pure ceramics, based on aluminium oxide
- 100 operating programmes
- Completely controlled process of firing
- Improved system of self-diagnostics
- Auto calibration of the temperature
- Quartz muffle
- SKU _A-77
Technical Data
| POWER SUPPLY | 110/230 V`,+_10%, 50/60 Hz |
| POWER CONSUMPTION | 1700 W |
| Furnace with vacumm pump | |
| Vacuum Pump Data | |
| Suction Capacity | 22 1/min |
| Adjustable vacuum | from 0,1 to 0,92bar |
| Maximum firing temperature | 1200°C |
| Firing Chamber dimensions | 95mm, h 60 mm |
| Dimensions | |
| W/D/H | 370x380x740 mm |
| Weight | 30 kg |
