Manufacturer : Whip Mix Corp

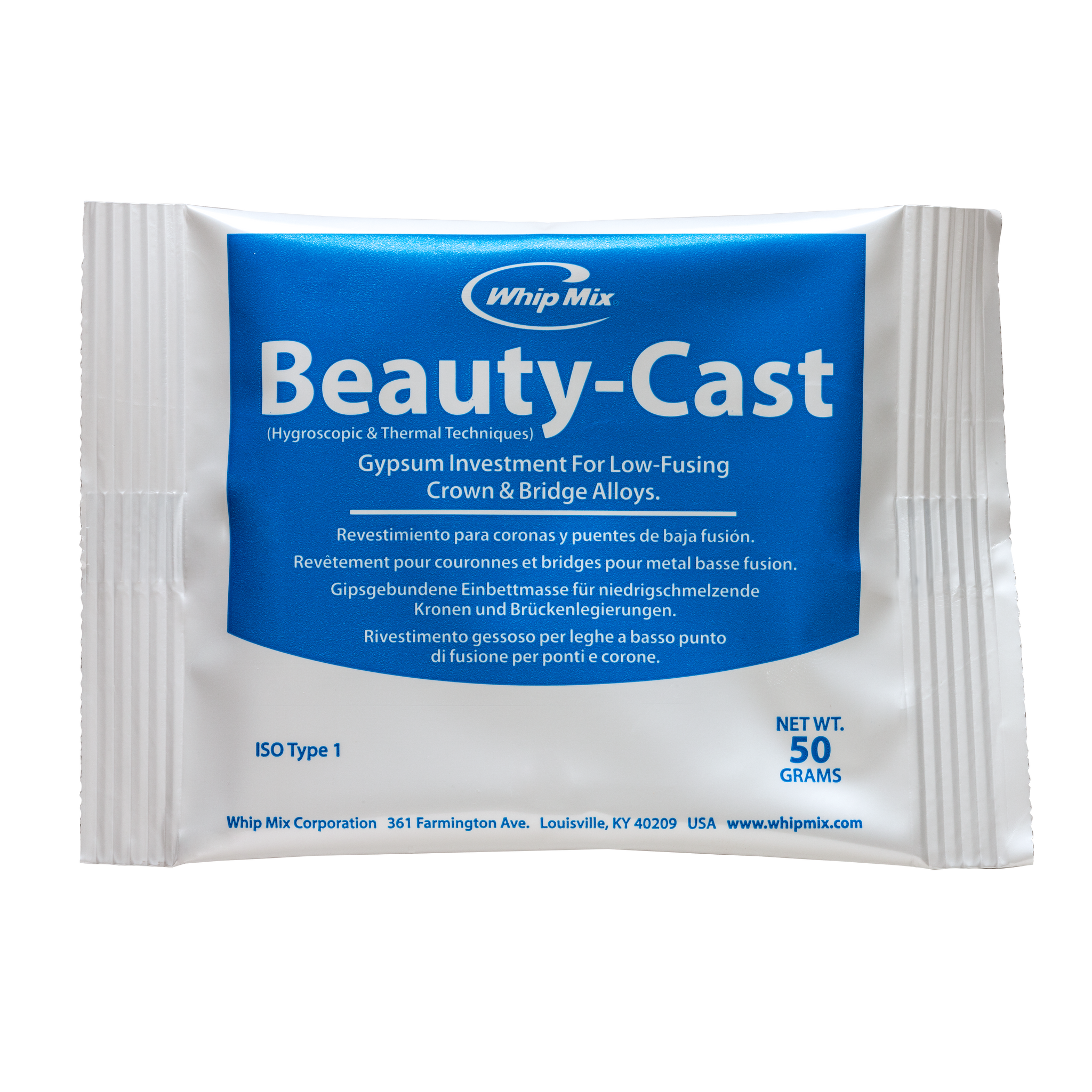

Whip Mix Beauty Cast Inlay Investment 24-50gm  |
MPN # 00078     SKU : WMK20
Description :

  • America's leading gypsum investment

    • The proven standard for the Hygroscopic Technique
    • Can also be used for the High Heat Technique

    The Hygroscopic Technique with Beauty-Cast is as simple and quick as the High Heat Technique, but the results are much more uniform. The use of a water bath at 37.8ºC (100ºF) automatically brings all patterns to uniform temperature, softening the wax enough for even expansion of the investment. Combined, the wax expansion and the high hygroscopic expansion compensate for mos of the gold shrinkage and thus the low temperature burnout at 480ºC (900ºF) provides the balance of the required mold expansion.

    With the hygroscopic expansion of Beauty-Cast at 1.5% and thermal expansion at 0.55% at 480ºC, we unhesitatingly recommend the Hygroscopic Technique with Beauty-Cast as best suiting today's needs for a precise yet simple routine technique.

    The inherent high thermal expansion of Beauty-Cast at 650ºC (1,200ºF) makes it possible to use the standard High Heat Technique. Setting expansion can be controlled by varying the number of ring liners in the Inlay Ring resulting in varying degrees of total expansion in Casting at 650ºC (1,200ºF) is necessary for the additional 1.2% for gold shrinkage. In the ADA Specification No. 2 for Investments, the term Type 1, Inlay Thermal refers to investments used by the High Heat Technique. With Beauty-Cast either technique will produce extremely smooth castings of a rich golden color that seldom require pickling.

    Physical Properties

    Water/Powder Ratio
    30 mL/100 g
    Working Time
    3 minutes
    Setting Time (ADA Method)
    14.5 minutes
    Ready for Burnout (minimum)
    30 minutes
    Setting Expansion
    0.40%
    Hygroscopic Expansion
    1.50%
    Thermal Expansion 480 degrees C (900 degrees F)
    0.55%
    Thermal Expansion 650 degrees C (1,200 degrees F)
    1.20%
    Compressive Strength, Wet
    700 psi (5 MPa)
